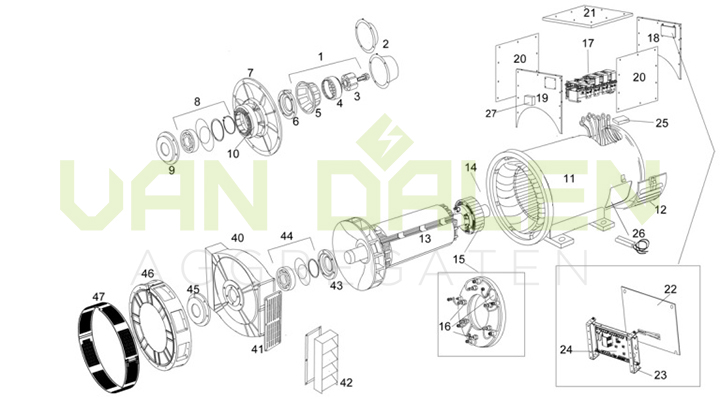

Desription |
Common parts |
Quantity |
| |
1 |
Complete P.M.G. upfit kit (to 18/08/00) |
45-0060A |
1 |
|
|
|
Complete P.M.G. upfit kit (from 18/08/00) |
45-0328A |
1 |
|
|
2 |
P.M.G. cover only included in kit 45-0059A |
450-13350 |
1 |
|
|
|
P.M.G. cover only included in kit 45-0328A |
410-10704 |
1 |
|
|
|
Non PMG cover (to 18/08/00) |
450-12590 |
1 |
|
|
|
Non PMG cover (from 18/08/00) |
410-10705 |
1 |
|
|
3 |
Current P.M.G. rotor/stator repair kit |
45-1082 |
1 |
|
|
4 |
Current P.M.G. rotor/stator repair kit |
45-1082 |
1 |
|
|
5 |
P.M.G. crown (it fitted) |
See no. 1 |
1 |
|
|
6 |
N.D.E. bearing cap (to 30/09/00) |
410-10268 |
1 |
|
|
7 |
N.D.E. bracket (to 30/09/00) |
520-10306 |
1 |
|
|
|
N.D.E. bracket (from 30/09/00) |
520-10780 |
1 |
|
|
8 |
N.D.E. bearing kit (to 30/09/00) |
45-0291 |
1 |
|
|
|
N.D.E. bearing kit (from 30/09/00) |
45-0320 |
1 |
|
|
9 |
N.D.E. bearing cartridge (to 20/09/00) |
458-12960 |
1 |
|
|
|
N.D.E. bearing cartridge (from 20/09/00) |
520-10811 |
1 |
|
|
10 |
Exciter stator 50mm |
410-1052 |
1 |
|
|
|
Exciter stator 65 mm |
520-10286 |
1 |
|
|
11 |
Main stator frame assy |
QMSN |
1 |
|
|
12 |
N.D.E. air inlet cover (louvred) |
462-20100 |
1 |
|
|
|
N.D.E. air inlet cover (industrial) |
520-10933 |
1 |
|
|
13 |
Main rotor assy |
QMSN |
1 |
|
|
14 |
Exciter rotor 50 mm |
462-23400 |
1 |
|
|
|
Exciter rotor 65 mm |
520-10305 |
1 |
|
|
15 |
Rotating rectifier assy |
450-16016 |
1 |
|
|
16 |
Diode FWD/REV & varistor kit |
RSK-5001 |
1 |
|
17 |
Main terminal board |
462-1020 |
1 |
|
|
18 |
Terminal box endpanel N.D.E. (to 08/98)
* zie kit
45-0894 |
520-10153 |
1 |
|
|
|
Terminal box endpanel N.D.E. (to 19/09/98) |
520-10534 |
1 |
|
|
|
Terminal box endpanel N.D.E. (from 20/09/98) |
520-10907 |
1 |
|
|
19 |
Terminal box endpanel D.E. (to 08/98) |
520-10181 |
1 |
|
|
|
Terminal box endpanel D.E. (from 08/98) |
520-10906 |
1 |
|
|
20 |
Terminal box side panel (to 08/98) |
462-11880 |
2 |
|
|
|
Terminal box side panel (from 08/98) |
520-10908 |
2 |
|
|
21 |
Terminal box LID (to 08/98) |
462-11840 |
1 |
|
|
|
Terminal box LID (from 08/98) |
520-10536 |
1 |
|
|
22 |
A.V.R. cover plate |
450-14310 |
1 |
|
|
|
A.V.R. cover plate (blanking) |
450-14310 |
1 |
|
|
23 |
A.V.R. mounting bracket |
45-0742 |
1 |
|
|
24 |
A.V.R. MX341 (standard series 3) |
E000-23412/1P |
1 |
|
|
|
A.V.R. MX341 UL |
A040H491 |
1 |
|
|
|
A.V.R. AS440 (Standard series 4) |
E000-24403/1P |
1 |
|
|
|
A.V.R. AS440 UL aprroved |
E000-24408/1P |
1 |
|
|
25 |
Auxiliary terminal board |
003-14027 |
2 |
|
|
26 |
Heater 110-125 volt |
45-0373 |
1 |
|
|
|
Heater kit 110-125 volt to include term box for
retrofit |
A040G624 |
1 |
|
|
|
Heater kit 220-260 volt |
45-0074 |
1 |
|
|
|
Heater kit 220-260 volt to include term box for
retrofit |
A040G620 |
1 |
|
|
27 |
Terminal box for heaters |
45-0024 |
1 |
|
|
40 |
D.E. bracket (to 29/09/00) |
462-11170 |
1 |
|
|
|
D.E. bracket (frome 29/09/00) |
520-10557 |
1 |
|
|
41 |
D.E. bracket screen |
462-10260 |
2 |
|
|
42 |
D.E. louvre |
520-10070 |
2 |
|
|
43 |
D.E. bearing cartridge (to 30/09/00) |
462-10130 |
1 |
|
|
|
D.E. bearing cartridge (from 30/09/00) |
520-10776 |
1 |
|
|
44 |
D.E. bearing kit (to 30/09/00) |
45-0292 |
1 |
|
|
|
D.E. bearing kit (from 30/09/00) |
45-0321 |
1 |
|
|
45 |
D.E. bearing cap outer (to 30/09/00) |
520-10333 |
1 |
|
|
|
D.E. bearing cap outer (from 30/09/00) |
520-10778 |
1 |
|
|
46 |
2 brg adaptor kit (SAE 0) |
45-0679 |
1 |
|
|
|
2 brg adaptor kit (SAE 0.5) |
45-0680 |
1 |
|
|
|
2 brg adaptor kit (SAE 1) |
45-0681 |
1 |
|
|
|
2 brg adaptor kit (SAE 00) |
45-0678 |
1 |
|
|
47 |
D.E. cover screen (included in kits) |
included in 46 |
1 |
|
|
|
|
|
|
|
|
|
* Note: Regrease option is not retrofittable |
|
|
