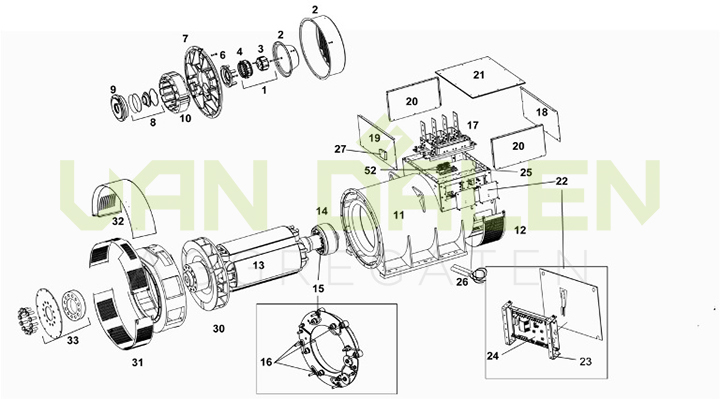

Desription |
Common parts |
Quantity |
| |
1 |
Complete P.M.G. upfit kit |
45-0119A |
1 |
|
|
2 |
P.M.G. cover (cover included in above kit) |
760-10562 |
1 |
|
|
2a |
N.D.E. air inlet cover G core only |
760-11279 |
1 |
|
|
|
N.D.E. air inlet cover G (marine) |
760-10965 |
1 |
|
|
3 |
Current P.M.G. rotor/stator repair kit |
45-1082 |
1 |
|
|
4 |
Current P.M.G. roto/stator repair kit |
45-1082 |
1 |
|
|
6 |
N.D.E. bearing cap |
760-10823 |
1 |
|
|
7 |
N.D.E. bracket (A - F) |
760-10819 |
1 |
|
|
|
N.D.E. endbracket (G) |
760-11205 |
1 |
|
|
8 |
N.D.E. bearing kit |
45-0336 |
1 |
|
|
9 |
N.D.E. bearing cartridge |
760-10821 |
1 |
|
|
10 |
Exciter stator 75 mm (A - F) |
366-40800 |
1 |
|
|
|
Exciter stator 100 mm (G) |
760-1151 |
1 |
|
|
11 |
Main stator frame assy |
QMSN |
1 |
|
|
12 |
N.D.E. air inlet cover (industrial) |
760-11274 |
1 |
|
|
|
N.D.E. air inlet cover (marine-louvred) |
366-21200 |
1 |
|
|
13 |
Main rotor assy |
QMSN |
1 |
|
|
14 |
Exciter rotor 75 mm (A - F) |
760-1186 |
1 |
|
|
|
Exciter rotor 100 mm (G) |
760-1178 |
1 |
|
|
15 |
Rotating rectifier assy |
760-11216 |
1 |
|
|
16 |
Diode FWD/REV & varistor kit |
RSK-6001 |
1 |
|
|
17 |
Main terminal board |
QMSN |
1 |
|
|
18 |
Terminal box endpanel N.D.E. |
760-11185 |
1 |
|
|
19 |
Terminal box endpanel D.E. |
760-11185 |
1 |
|
|
20 |
Terminal box side panel |
760-11186 |
2 |
|
|
21 |
Terminal box LID |
760-10663 |
1 |
|
|
22 |
A.V.R. cover plate (access) |
450-15254 |
1 |
|
|
|
A.V.R. cover plate (blanking) |
450-14310 |
1 |
|
|
23 |
A.V.R. mounting bracket |
45-0742 |
1 |
|
24 |
A.V.R. MX341 (standard series 3) |
E000-23412/1P |
1 |
|
|
|
A.V.R. MX 341 TBA |
|
TBA |
|
|
|
A.V.R. MX321 |
E000-23212/1P |
1 |
|
|
|
A.V.R. MX321 TBA |
|
TBA |
|
|
25 |
Auxiliary terminal board |
450-15489 |
2 |
|
|
26 |
Heater 110-125 Volt |
45-0324 |
1 |
|
|
|
Heater 220-260 Volt |
45-0325 |
1 |
|
|
|
Heater 110-125 Volt (G core) |
45-1047 |
1 |
|
|
|
Heater 220-260 Volt (G core) |
45-1048 |
1 |
|
|
27 |
Terminal box for heaters |
45-0024 |
1 |
|
|
30 |
D.E. adaptor kit (SAE 0) |
45-1011 |
1 |
|
|
|
D.E. Adaptor kit (SAE 00) |
45-1012 |
1 |
|
|
31 |
D.E. screen (included in kit) |
See item 30 |
1 |
|
|
32 |
Louvre kit SAE 00 - A - F |
45-1049 |
1 |
|
|
|
Louvre kit SAE 00 - G |
45-1050 |
1 |
|
|
|
Louvre kit SAE 0 - A - F |
45-1051 |
1 |
|
|
|
Louvre kit SAE 0 - G |
45-1052 |
1 |
|
|
33 |
Coupling kit SAE 18 (standard) |
45-0792 |
1 |
|
|
|
Coupling kit SAE 18 (special 12 hole) |
45-1005 |
1 |
|
|
|
Coupling kit SAE 21 |
45-0793 |
1 |
|
|
|
Coupling kit SAE 24 |
45-0794 |
1 |
|
|
52 |
Isolation transformer 2 to 1
(up to 480V) |
450-42150 |
1 |
|
|
|
Isolation transformer 2.5 to 1 (500 to 600V) |
450-41650 |
1 |
|
|
|
Isolation transformer 3 t0 1
(601 to 720V) |
450-41750 |
1 |
