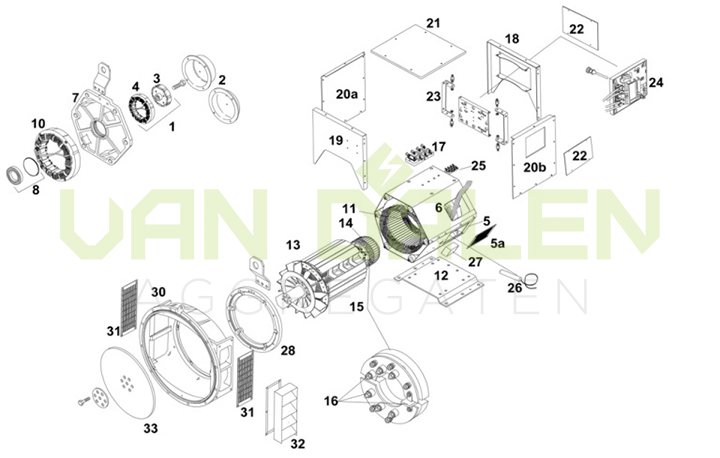

Desription |
Common parts |
Quantity |
| |
1 |
Complete P.M.G. upfit KIT |
45-0075A |
1 |
|
|
2 |
P.M.G. cover (cover included in above kit) |
450-14360 |
1 |
| |
|
Non PMG cover |
450-14450 |
1 |
|
|
3 |
Current P.M.G. rotor/stator repair kit |
45-1080 |
1 |
| |
4 |
Current P.M.G. rotor/stator repair kit |
45-1080 |
1 |
|
|
5 |
Main stator bottom cover C-D |
230-10340 |
1 |
| |
|
Main stator bottom cover E-F |
230-10341 |
1 |
|
|
|
Main stator bottom cover G |
230-10342 |
1 |
| |
5a |
Air inlet cover |
23-10054 |
2 |
|
|
6 |
Main stator top cover C-D |
230-10336 |
1 |
| |
|
Main stator top cover E-F |
230-10337 |
1 |
|
|
|
Main stator top cover G |
230-10338 |
1 |
| |
7 |
N.D.E. Bracket / Achterschild |
230-10002 |
1 |
|
|
8 |
N.D.E. Bearing kit / Lagerset |
45-0867 |
1 |
| |
10 |
Exciter Stator C & D 30mm |
230-1495 |
1 |
|
|
|
Exciter Stator E F & G 40 mm |
230-1497 |
1 |
| |
11 |
Main Stator bar assy |
QMSN |
1 |
|
|
12 |
Foot |
230-10270 |
1 |
| |
13 |
Main rotor assy |
QMSN |
2 |
|
|
14 |
Exciter rotor C - D 30 mm |
210-1036 |
1 |
| |
|
Exciter rotor E - G 40 mm |
210-1037 |
1 |
|
|
15 |
Rotating rectifier assy |
45-0428 |
1 |
| |
16 |
Diode FWD/REV & Varistor kit / Diodeset |
RSK-2001 |
1 |
|
|
17 |
Main terminal board |
450-15617 |
1 |
| |
18 |
Terminal box endpanel N.D.E. (access) UCD22 |
230-10566 |
1 |
|
|
|
Terminal box endpanel N.D.E. (plain) UCD22 |
230-10587 |
1 |
| |
|
Terminal box endpanel N.D.E. (access) UCD27 |
330-10602 |
1 |
|
|
|
Terminal box endpanel N.D.E (plain) UCD27 |
330-10622 |
|
| |
19 |
Terminal box endpanel D.E. (plain) UCD22 |
230-10565 |
1 |
|
|
|
Terminal box endpanel D.E. (access) UCD22 |
230-10599 |
1 |
| |
|
Terminal box endpanel D.E. (plain) UCD27 |
330-10601 |
1 |
|
|
|
Terminal box endpanel D.E. (access) UCD27 |
330-10630 |
1 |
| |
20a |
Terminal box side panel (right hand plain )
UCD22 |
230-10567 |
1 |
|
|
|
Terminal box side panel (right hand plain) UCD27 |
330-10613 |
1 |
| |
|
Terminal box side panel (right hand access)
UCD27 |
330-10620 |
1 |
|
|
20b |
Terminal box side panel (left hand plain) UCD22 |
230-10575 |
1 |
|
|
|
Terminal box side panel (left hand access) UCD22 |
230-10568 |
1 |
|
|
|
Terminal box side panel (left hand plain) UCD27 |
330-10614 |
1 |
|
|
|
Terminal box side panel (left hand access) UCD27 |
330-10612 |
|
|
|
21 |
Terminal box LID UCD22 |
230-10069 |
1 |
|
|
22 |
A.V.R. cover plate (to 28/11/04) |
450-14310 |
1 |
|
|
|
A.V.R. cover plate (from 28/11/04) |
410-10536 |
1 |
|
|
23 |
A.V.R. mounting bracket |
45-0742 |
1 |
|
|
24 |
A.V.R. MX341 (Standard series 3) / Regelaar |
E000-23412/1P |
1 |
|
|
|
A.V.R. MX341 UL / Regelaar |
A040H491 |
1 |
|
|
|
A.V.R. MX321 (series 3) / Regelaar |
E000-23412/1P |
1 |
|
|
|
A.V.R. MX321 TBA / Regelaar |
|
TBA |
|
|
|
A.V.R. AS440 (standard series 4) / Regelaar |
E000-24403/1P |
1 |
|
|
|
A.V.R. AS440 UL aprroved |
E000-24408/1P |
1 |
|
|
|
A.V.R. SX460 (standard series 6) |
E00024602/1P |
1 |
|
|
|
A.V.R. SX460 UL aprroved |
E000-24608/1P |
1 |
|
|
|
A.V.R. SX421 |
E000-24210/1P |
1 |
|
|
25 |
Auxiliary terminal board |
003-14027 |
2 |
|
|
26 |
Heater 110-125 volt |
45.0118 |
1 |
|
|
|
Heater kit 110-125 volt to include term box for
retrofit |
A040G630 |
1 |
|
|
|
Heater 220-260 volt |
45-0117 |
1 |
|
|
|
Heater kit 220-260 volt to include term box for
retrofit |
A040-G622 |
1 |
|
|
27 |
Terminal box for heaters |
45-0024 |
1 |
|
|
30 |
UCD22 adaptor kit SAE 3 |
45-0850 |
1 |
|
|
|
UCD27 adaptor kit SAE 2 |
45-0851 |
1 |
|
|
|
UCD27 adaptor kit SAE 1 |
45-0852 |
1 |
|
|
32 |
UCD22 louvre kit |
45-0807 |
1 |
|
|
|
UCD27 louvre kit |
45-0855 |
1 |
|
|
33 |
UCD22 coupling kit SAE 10 |
45-0839 |
1 |
|
|
|
UCD22 coupling kit SAE 11.5 |
45-0840 |
1 |
|
|
|
UCD27 coupling kit SAE 11.5 |
45-0768 |
1 |
|
|
|
UCD27 coupling kit SAE 14 |
45-0766 |
1 |
