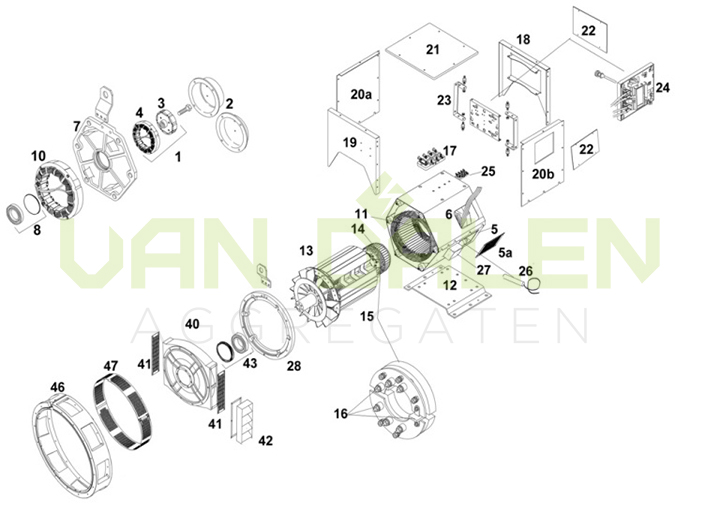

UCI224C TO G 2 BEARING MACHINE   Bekijk alle typen



  # Desription Common parts Quantity
  1 Complete P.M.G. upfit KIT 45-0075A 1
  2 P.M.G. Cover (cover included in above kit) 450-14360 1
    Non PMG Cover 450-14450 1
  3 Current P.M.G. rotor/stator repair kit 45-1080 1
  4 Current P.M.G. rotor/stator repair kit 45-1080 1
  5 Main stator bottom cover C-D 230-10340 1
    Main stator bottom cover E-F 230-10341 1
    Main stator bottom cover G 230-10342 1
  5a Air inlet cover 23-10054 2
  6 Main stator top cover C-D 230-10336 1
    Main stator top cover E-F 230-10337 1
    Main stator top cover G 230-10338 1
  7 N.D.E. Bracket / Achterschild 230-10002 1
  8 N.D.E. Bearing kit / Lagerset 45-0867 1
  10 Exciter Stator C & D 30mm 230-1495 1
    Exciter Stator E F & G 40 mm 230-1497 1
  11 Main Stator bar assy QMSN 1
  12 Foot 230-10270 1
  13 Main rotor assy QMSN 2
  14 Exciter rotor C - D 30 mm 210-1036 1
    Exciter rotor E - G 40 mm 210-1037 1
  15 Rotating rectifier assy 45-0428 1
  16 Diode FWD/REV & Varistor kit / Diodeset RSK-2001 1
  17 Main terminal board 450-15617 1
  18 Terminal box endpanel N.D.E. (access) 230-10566 1
    Terminal box endpanel N.D.E. (plain) 230-10587 1
  19 Terminal box endpanel D.E. (plain) 230-10565 1
    Terminal box endpanel D.E. (access) 230-10599 1
  20a Terminal box side panel (right hand) 230-10567 1
    Terminal box side panel (access) 230-10573 1
  20b Terminal box side panel (left hand) 230-10575 2
    Terminal box side panel (access) 230-10568 1
  21 Terminal box LID 230-10069 1
  22 A.V.R. Cover plate to (28/11/04) 450-14310 1
    A.V.R. Cover plate from (28/11/04) 410-10536 1
  23 A.V.R. Mounting bracket 45-0742 1
  24 A.V.R. MX341 (Standard series 3) / Regelaar E000-23412/1P 1
    A.V.R. MX341 UL / Regelaar A040H491 1
    A.V.R. MX321 (Series 3) / Regelaar E000-23212/1P 1
    A.V.R. MX321 TBA / Regelaar   TBA
    A.V.R. AS440 (Standard series 4) / Regelaar E000-24403/1P 1
    A.V.R. AS440 UL Aprroved E000-24408/1P 1
    A.V.R. SX460 (standard series 6) E00024602/1P 1
    A.V.R. SX460 UL aprroved E000-24608/1P 1
  25 Auxiliary terminal board 003-14027 2
  26 Heater 110-125 volt 45.0118 1
    Heater kit 110-125 volt to include term box for retrofit A040G630 1
    Heater 220-260 volt 45-0117 1
    Heater kit 220-260 volt to include term box for retrofit A040-G622 1
  27 Terminal box for heaters 45-0024 1
  28 D.E. Adaptor ring 230-10001 1
  40 D.E. Bracket 230-10073 1
  41 D.E. Screen 210-10121 1
  42 Louvre 45-0632 1
  43 D.E. bearing kit 45-0365 1
  46 Adaptor kit SAE 1 45-0529 1
    Adaptor kit SAE 2 45-0530 1
    Adaptor kit SAE 3 45-0531 1
    Adaptor kit SAE 4 45-0532 1
    Adaptor kit SAE 5 45-0533 1





Bestel bij Van Dalen Aggregaten (vervangende) onderdelen voor uw generator. Aan de hand van de tekening en de corresponderende nummers kunt u precies zien welk onderdeel u nodig heeft.

Alle onderdelen zijn opgenomen in de tabel onder de tekening.
