UCI274C TO H ONE BEARING MACHINE   Bekijk alle typen



  # Desription Common parts Quantity
  1 Complete P.M.G. upfit KIT 45-0075A 1
  2 P.M.G. Cover (cover included in above kit) 450-14360 1
    Non PMG Cover 450-14450 1
  3 Current P.M.G. rotor/stator repair kit 45-1080 1
  4 Current P.M.G. rotor/stator repair kit 45-1080 1
  5 Main stator bottom cover C-D 330-10386 1
    Main stator bottom cover E-F 330-10387 1
    Main stator bottom cover G 330-10388 1
    Main stator bottom cover H 330-10389 1
  5a Air inlet cover 330-10020 1
  6 Main stator top cover C-D 330-10381 1
    Main stator top cover E-F 330-10382 1
    Main stator top cover G 330-10383 1
    Main stator top cover H 330-10384 1
  7 N.D.E. Bracket / Achterschild 330-10002 1
  8 N.D.E. Bearing kit / Lagerset 45-0868 1
  10 Exciter Stator C & D 40mm 230-1497 1
    Exciter Stator E - H 60 mm 330-1280 1
  11 Main Stator bar assy QMSN 1
  12 Foot 330-10137 1
  13 Main rotor assy QMSN 1
  14 Exciter rotor C - D 40 mm 210-1037 1
    Exciter rotor E - H 60 mm 310-1028 1
  15 Rotating rectifier assy 45-0428 1
  16 Diode FWD/REV & Varistor kit / Diodeset RSK-2001 1
  17 Main terminal board 450-15617 1
  18 Terminal box endpanel N.D.E. (access) 330-10602 1
    Terminal box endpanel N.D.E. (plain) 330-10622 1
  19 Terminal box endpanel D.E. (plain) 330-10601 1
    Terminal box endpanel D.E. (access) 330-10630 1
  20a Terminal box side panel (right hand) 330-10603 1
    Terminal box side panel (access) 330-10617 1
  20b Terminal box side panel (left hand) 330-10609 1
    Terminal box side panel (access) 330-10604 1
  21 Terminal box LID 230-10069 1
  22 A.V.R. Cover plate (to 28/11/04) 450-14310 1
    A.V.R. Cover plate (from 28/11/04) 410-10536 1
  23 A.V.R. Mounting bracket 45-0742 1
  24 A.V.R. MX341 (Standard series 3) / Regelaar E000-23412/1P 1
    A.V.R. MX341 UL / Regelaar A040H491 1
    A.V.R. MX321 (Series 3) / Regelaar E000-23212/1P 1
    A.V.R. MX321 TBA / Regelaar   TBA
    A.V.R. AS440 (standard series 4) / Regelaar E000-24403/1P 1
    A.V.R. AS440 UL aprroved E000-24408/1P 1
    A.V.R. SX460 (standard series 6) E00024602/1P 1
    A.V.R. SX460 UL aprroved E000-24608/1P 1
    A.V.R. SX421 E000-24210/1P
  25 Auxiliary terminal board 003-14027 1
  26 Heater 110-125 volt 45-0118 1
    Heater kit 110-125 volt to include term box for retrofit A040G630 1
    Heater 220-260 volt 45-0117 1
    Heater kit 220-260 volt to include term box for retrofit A040-G622 1
  27 Terminal box for heaters 45-0024 1
  28 D.E. Adaptor ring 330-10001 1
  30 D.E. adaptor kit (SAE 1) 45-0690 1
    D.E. adaptor kit (SAE 2) 45-0520 1
    D.E. adaptor kit (SAE 3) 45-0521 1
  31 D.E. screen (included in adaptor kits) 310-10400 1
  32 D.E. louvre 45-0633 1
  33 Coupling kit SAE 10 45-0764 1
    Coupling kit SAE 11.5 45-0765 1
    Coupling kit SAE 14 45-0766 1
    Coupling kit DELCO 17.75 45-0767 1
    Coupling kit SAE 11.5 (for SAE 1 new) 45-0768 1

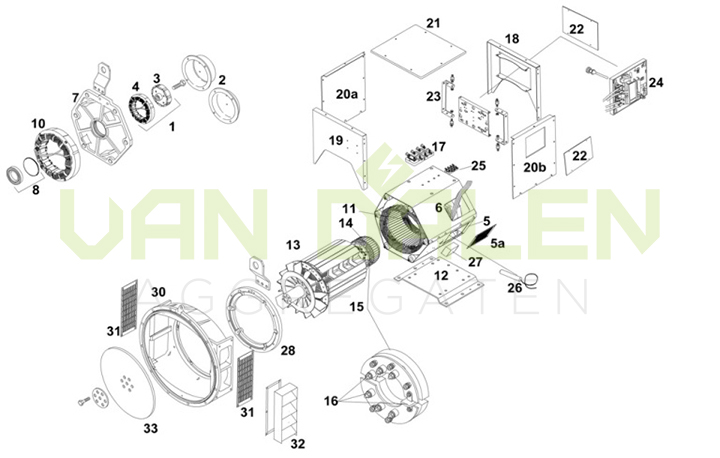

Bestel bij Van Dalen Aggregaten (vervangende) onderdelen voor uw generator. Aan de hand van de tekening en de corresponderende nummers kunt u precies zien welk onderdeel u nodig heeft.

Alle onderdelen zijn opgenomen in de tabel onder de tekening.
