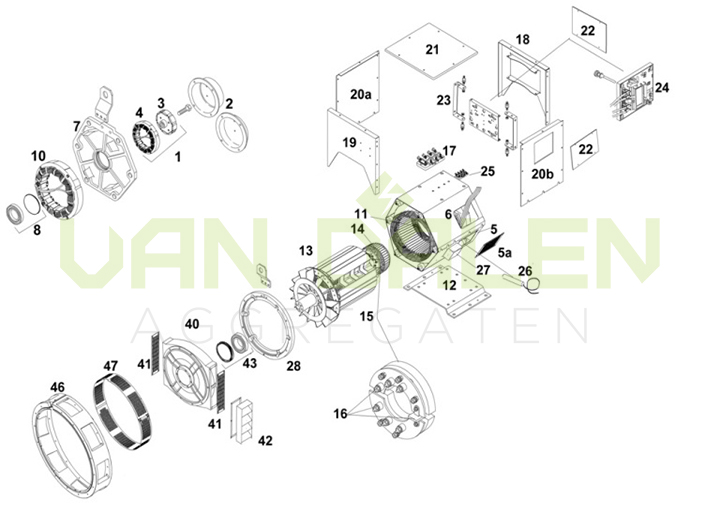

Desription |
Common parts |
Quantity |
| |
1 |
Complete P.M.G. upfit KIT |
45-0075A |
1 |
|
|
2 |
P.M.G. Cover (cover included in above kit) |
450-14360 |
1 |
| |
|
Non PMG Cover |
450-14450 |
1 |
|
|
3 |
Current P.M.G. rotor/stator repair kit |
45-1080 |
1 |
| |
4 |
Current P.M.G. rotor/stator repair kit |
45-1080 |
1 |
|
|
5 |
Main stator bottom cover C-D |
230-10386 |
1 |
| |
|
Main stator bottom cover E-F |
330-10387 |
1 |
|
|
|
Main stator bottom cover G |
330-10388 |
1 |
|
|
|
Main stator bottom cover H |
330-10389 |
1 |
|
|
5a |
Air inlet cover |
330-10020 |
1 |
|
|
6 |
Main stator top cover C-D |
330-10381 |
1 |
|
|
|
Main stator top cover E-F |
330-10382 |
1 |
|
|
|
Main stator top cover G |
330-10383 |
1 |
|
|
|
Main stator top cover H |
330-10384 |
1 |
|
|
7 |
N.D.E. Bracket / Achterschild |
330-10002 |
1 |
|
|
8 |
N.D.E. Bearing kit / Lagerset |
45-0868 |
1 |
|
|
10 |
Exciter Stator C & D 40 mm |
230-1497 |
1 |
|
|
|
Exciter Stator E - H 60 mm |
330-1280 |
1 |
|
|
11 |
Main Stator bar assy |
QMSN |
1 |
|
|
12 |
Foot |
330-10137 |
1 |
|
|
13 |
Main rotor assy |
QMSN |
1 |
|
|
14 |
Exciter rotor C - D 40 mm |
210-1037 |
1 |
|
|
|
Exciter rotor E - H 60 mm |
310-1028 |
1 |
|
|
15 |
Rotating rectifier assy |
45-0428 |
1 |
|
|
16 |
Diode FWD/REV & Varistor kit / Diodeset |
RSK-2001 |
1 |
|
|
17 |
Main terminal board |
450-15617 |
1 |
|
|
18 |
Terminal box endpanel N.D.E. (access) |
330-10602 |
1 |
|
|
|
Terminal box endpanel N.D.E. (plain) |
330-10622 |
1 |
|
|
19 |
Terminal box endpanel D.E. (plain) |
330-10601 |
1 |
|
|
|
Terminal box endpanel D.E. (access) |
330-10630 |
1 |
|
|
20a |
Terminal box side panel (right hand) |
330-10603 |
1 |
|
|
|
Terminal box side panel (access) |
330-10617 |
1 |
|
|
20b |
Terminal box side panel (left hand) |
330-10609 |
1 |
|
|
|
Terminal box side panel (access) |
330-10604 |
1 |
|
|
21 |
Terminal box LID |
330-10069 |
1 |
|
|
22 |
A.V.R. Cover plate (to 28/11/04) |
450-14310 |
1 |
|
|
|
A.V.R. Cover plate (from 28/11/04) |
410-10536 |
1 |
|
|
23 |
A.V.R. Mounting bracket |
45-0742 |
1 |
|
|
24 |
A.V.R. MX341 (standard series 3) / Regelaar |
E000-23412/1P |
1 |
|
|
|
A.V.R. MX341 UL / Regelaar |
A040H491 |
1 |
|
|
|
A.V.R. MX321 (Series 3) / Regelaar |
E000-23212/1P |
1 |
|
|
|
A.V.R. MX321 TBA / Regelaar |
|
TBA |
|
|
|
A.V.R. AS440 (Standard series 4) / Regelaar |
E000-24403/1P |
1 |
|
|
|
A.V.R. AS440 UL prroved |
E000-24408/1P |
1 |
|
|
|
A.V.R. SX460 (standard series 6) |
E00024602/1P |
1 |
|
|
|
A.V.R. SX460 UL Aprroved |
E000-24608/1P |
1 |
|
|
|
A.V.R. SX421 |
E000-24210/1P |
1 |
|
|
25 |
Auxiliary terminal board |
003-14027 |
1 |
|
|
26 |
Heater 110-125 volt |
45-0118 |
1 |
|
|
|
Heater kit 110-125 volt to include term box for
retrofit |
A040G630 |
1 |
|
|
|
Heater kit 220-260 volt |
45-0117 |
1 |
|
|
|
Heater kit 220-260 volt to include term box for
retrofit |
A040-G622 |
1 |
|
|
27 |
Terminal box for heaters |
45-0024 |
1 |
|
|
28 |
D.E. Adaptor ring |
330-10001 |
1 |
|
|
40 |
D.E. Bracket |
330-10076 |
1 |
|
|
41 |
D.E. Screen |
310-10049 |
1 |
|
|
42 |
Louvre |
45-0634 |
1 |
|
|
43 |
D.E. Bearing kit |
45-0367 |
1 |
|
|
46 |
Adaptor kit SAE 1 |
45-0522 |
1 |
|
|
|
Adaptor kit SAE 2 |
45-0523 |
1 |
|
|
|
Adaptor kit SAE 3 |
45-0524 |
1 |
|
|
|
Adaptor kit DIN 1 |
45-0863 |
1 |
|
|
|
Adaptor kit DIN 2 |
45-0912 |
1 |
